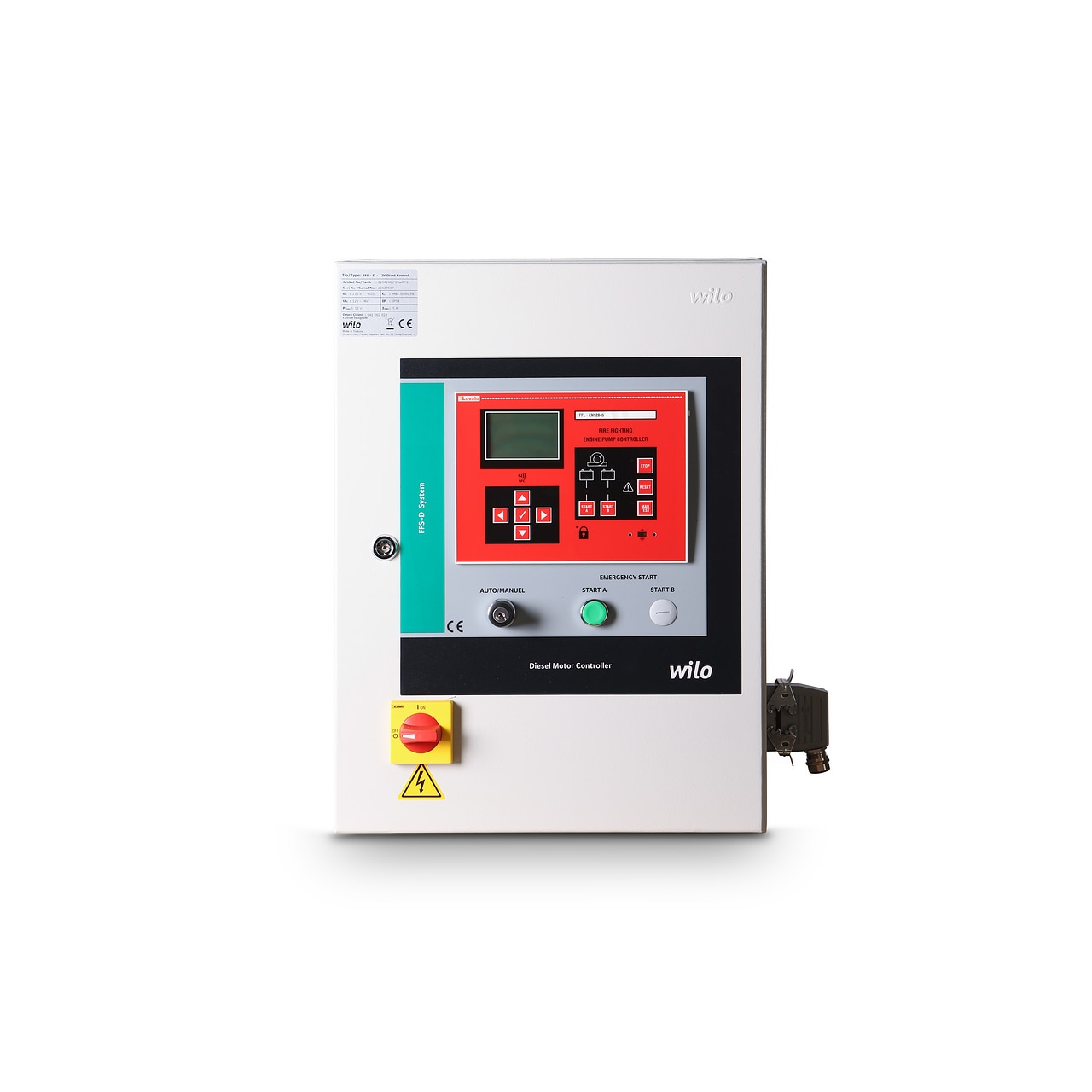

Switchgear FFS-D

Fire-specific diesel control safety:

Designed in accordance with EN12845, the FFS-D control panels are specially developed for managing diesel engine-driven fire pumps. Even during power outages, they ensure maximum safety and continuity through battery-supported functionality.

Clear and intuitive user interface:

With a 128x80 pixel graphical LCD screen, backlit with 4-level grayscale, the panel offers excellent readability under any condition. Equipped with 8 LED indicators and 10 function keys, all system functions are quickly and easily accessible.

Continuous monitoring and control:

Advanced analog and digital I/Os allow for real-time monitoring of critical parameters such as temperature, current, and voltage. Resistance-type sensors provide measurements for oil pressure, coolant temperature, and fuel level.

Manual and automatic operating modes:

The system automatically activates the diesel pump when a pressure drop is detected via pressure switches. In manual mode, safe testing and maintenance operations can be performed by the operator.

Programmable alarms and I/O functions:

Thanks to its integrated PLC logic, user-defined alarms, counters, thresholds, and system states can be flexibly configured according to the application.

Event history log:

The panel stores detailed records of the last 128 events, supporting system diagnostics and maintenance planning.

Easy integration:

With support for the Modbus RTU communication protocol, the FFS-D panel easily integrates with building automation and remote monitoring systems.
